Technical data

01
Cable Range (Inches/mm)
1.14-1.38 (29-35)
02
Thread Type & Size
M63 x 1.5
03
Protection Rating
IP68 (10 bar)
04
A Clearance Hole (Inches/mm)
2.56 (65)
05
B Body Length (Inches/mm)
2.48 (63)
06
C Thread Length (Inches/mm)
.55 (14)
07
D Thread Length (Inches/mm)
2.68 (68)
08

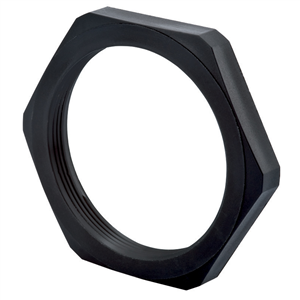

Locking nut
Locking Nut Sold Separately
§ 04

Documentation

"Sealcon #: CD12DA-BXA

Cable Range:  .08-.20 (2-5)
Color: Black
Material: Fiber Reinforced Nylon
Hummel: HSK-K-Ex-Active
Hummel #: 1.292.1201.50
Locking Nut Sold Separately
Class I, Zone 2, Groups A,B,C,D
Class II, Zone 1 or 2, Groups E,F,G
II 2G Ex eb IIC Gb
II 1D Ex ta IIIC Da
Zone 1 = 2G ATEX = Gb by IEC
Zone 2 = 3G ATEX = Gc by IEC
Zone 20 = 1D by ATEX = Da by IEC
Zone 21 = 2D by ATEX = Db by IEC"
